ATCマガジンユニット
ATCマガジンユニット
製作は１台よりご依頼可能 詳細はお問い合わせください。

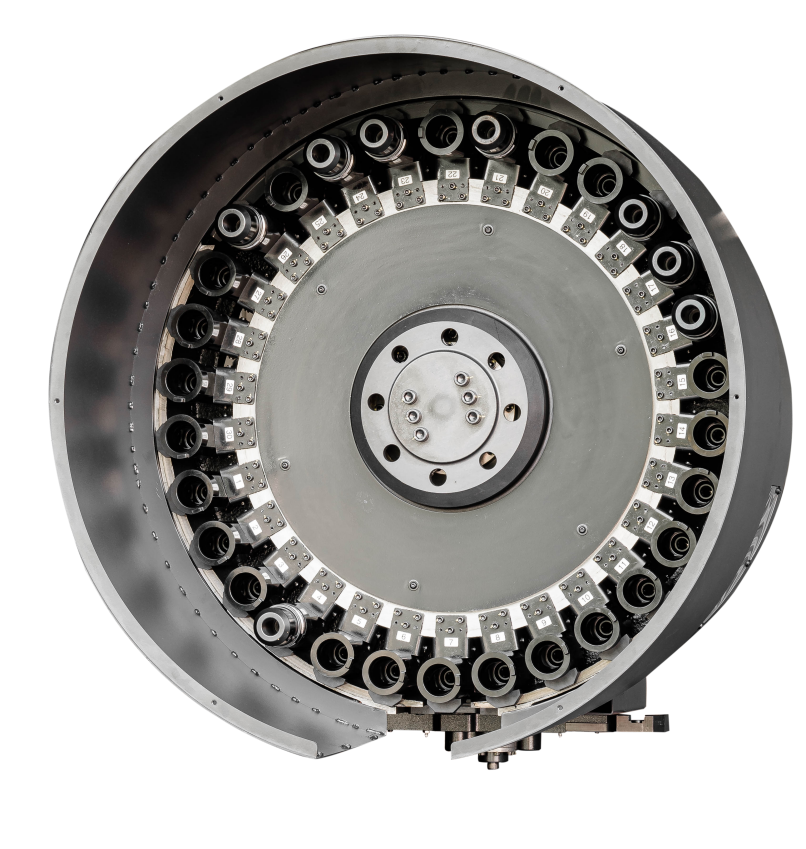

| Magazine Specifications | # 40 |
|---|---|
| Tool shank | BT / CAT / HSK |
| Number of magazaine tools | 32T |
| Max. Tool length | 300 mm |
| Max. Tool diameter | Ø 100 |
| Max. Tool weight | 8 kg |
| Magazine drive motor | servo |
| Tool running direction | CW / CCW |
| Tool Indexing time(1 Tool) | 0.31 sec |
| Tool Indexing Time(16 Tool) | 4.0 sec |

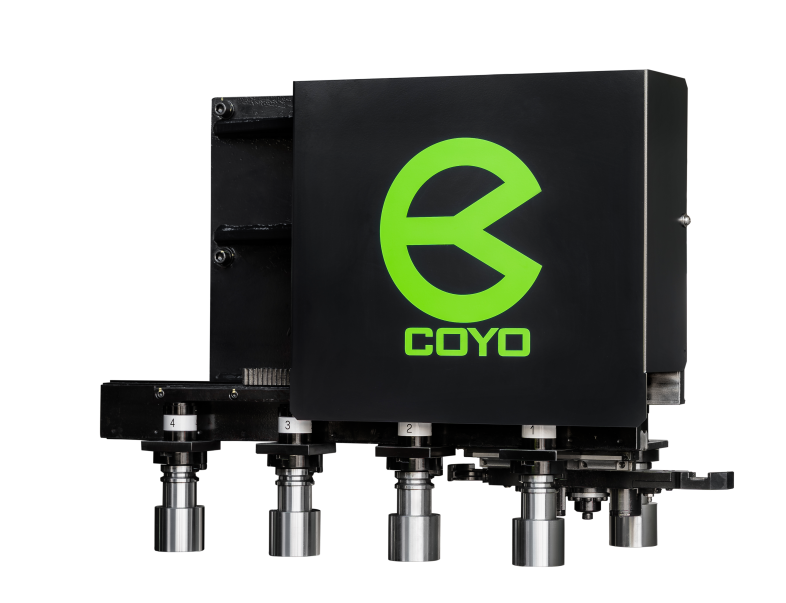

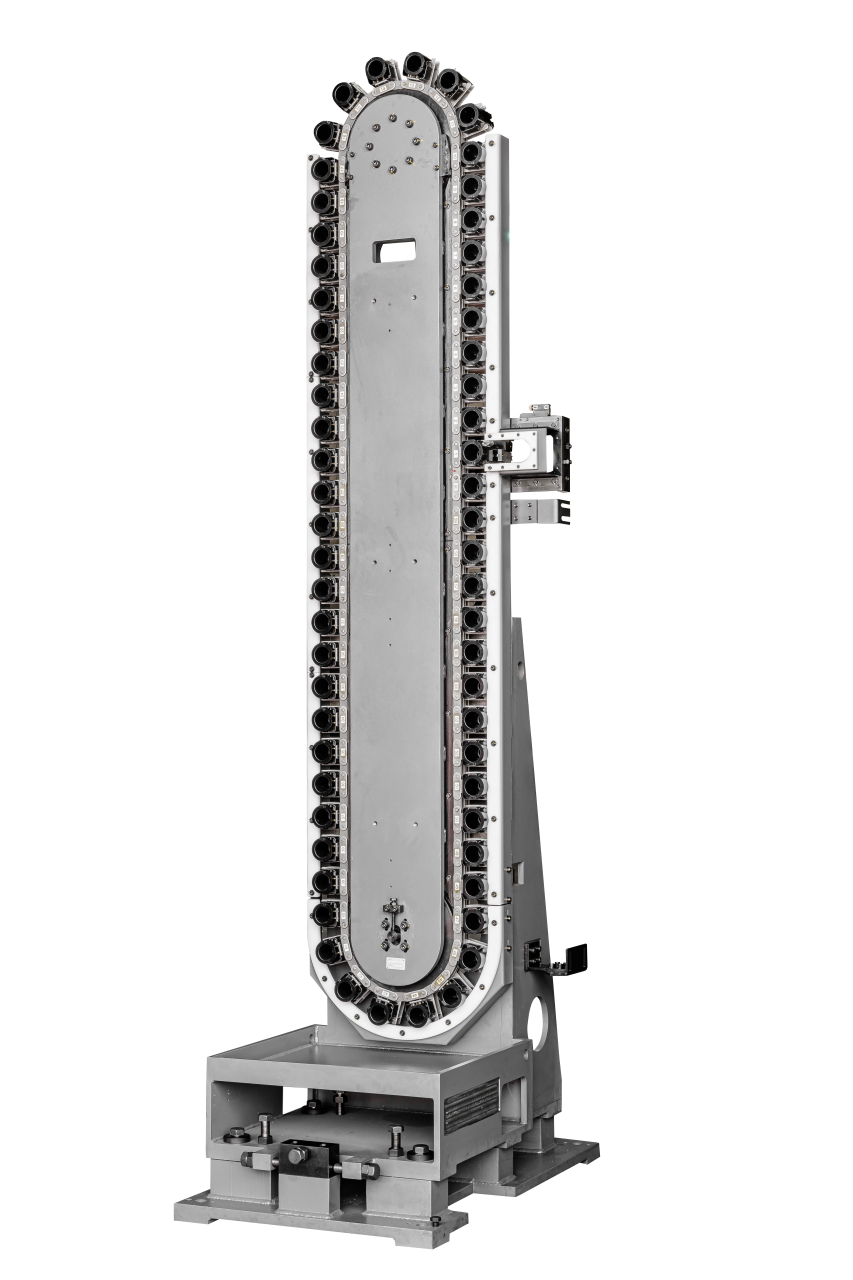

| Magazine Specifications | # 30 |
|---|---|
| Tool shank | BT / HSK |
| Number of magazaine tools | 4T |
| Max. Tool length | 200mm |
| Max. Tool diameter | Ø 60 |
| Max. Tool weight | 4 kg |
| Tool change time | 1.3 sec |
| Magazine drive motor | servo |
| Tool running direction | linear reciprocating |
| Tool Indexing time(1 Tool) | 1.48 sec |
| Tool Indexing Time(4 Tool) | 6.4 sec |
| Air pressure | 0.4~0.5Mpa |
| Magazine Specifications | # 40 | # 50 |
|---|---|---|
| Tool shank | BT / CAT / HSK | |
| Number of magazaine tools | 32T / 40T / 60T | 32T / 40T |
| Max. Tool length | 300 mm | 400 mm |
| Max. Tool diameter | Ø 90 | Ø 125 |
| Max. Tool weight | 8 kg | 20 kg |
| Tool change time | 1.5 sec | 2.5 sec |
| Magazine drive motor | servo | servo |
| Tool running direction | CW / CCW | CW / CCW |
| Air pressure | 0.4~0.5Mpa | 0.4~0.5Mpa |

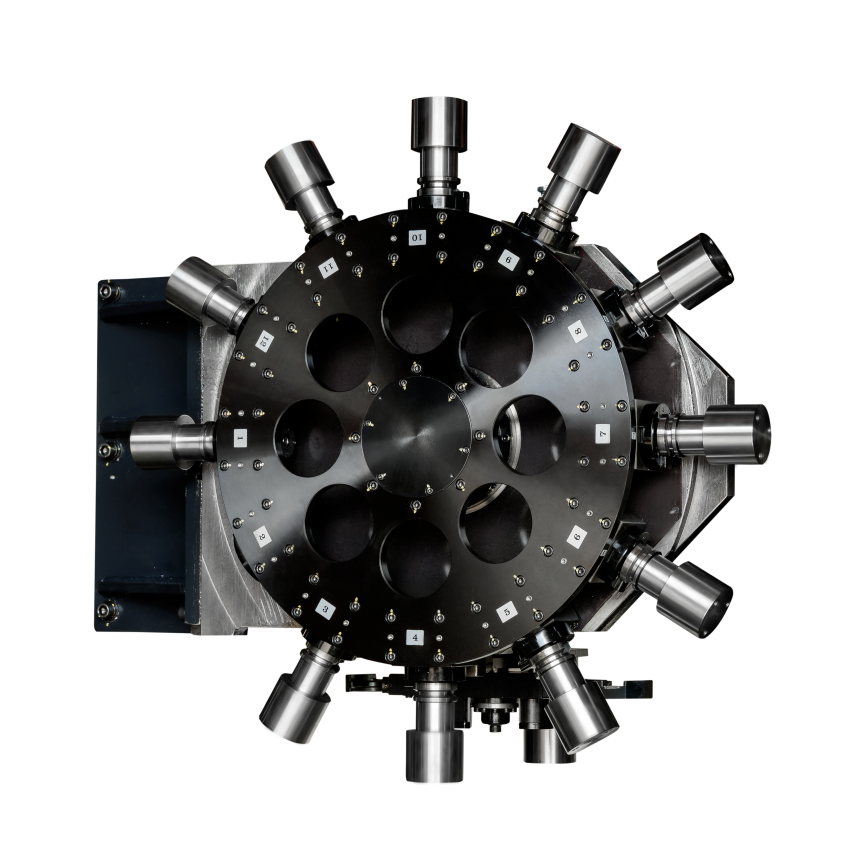

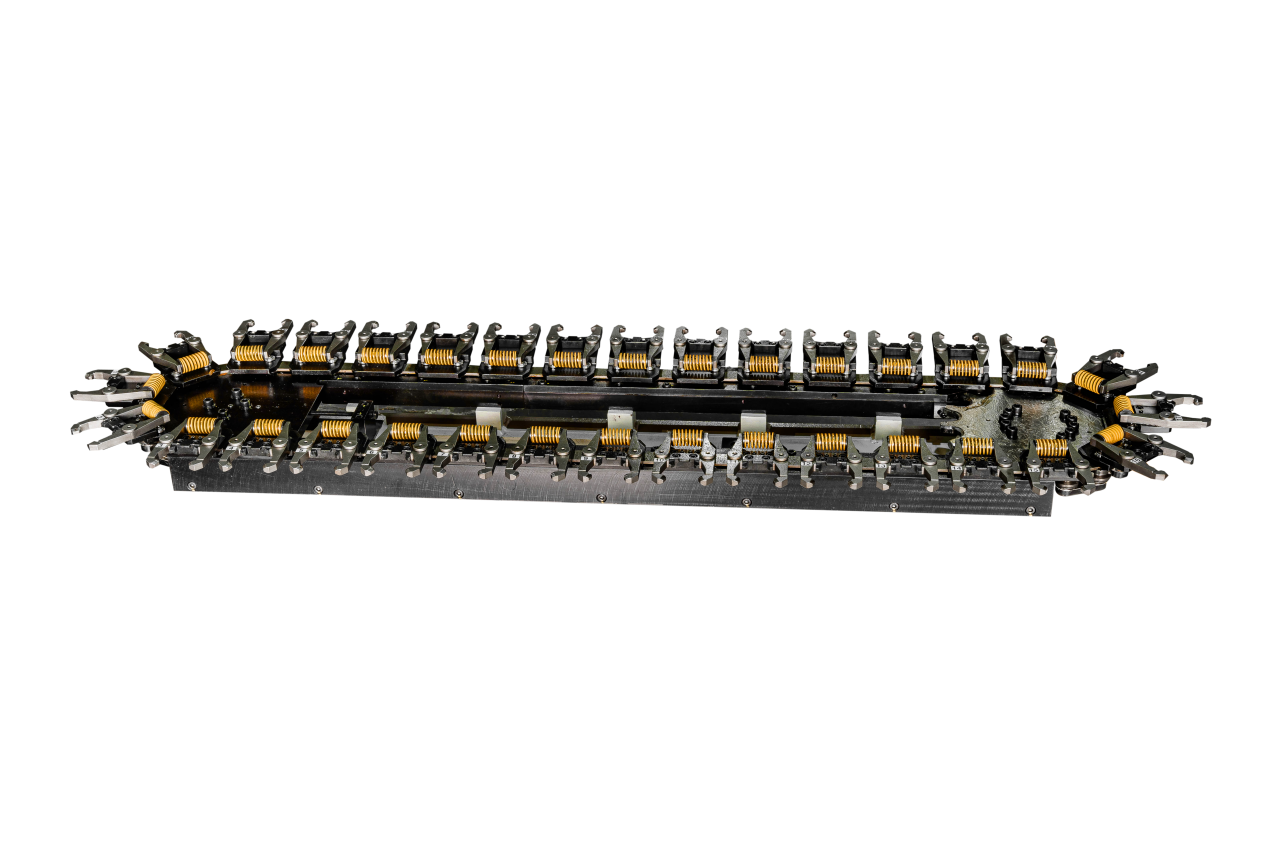

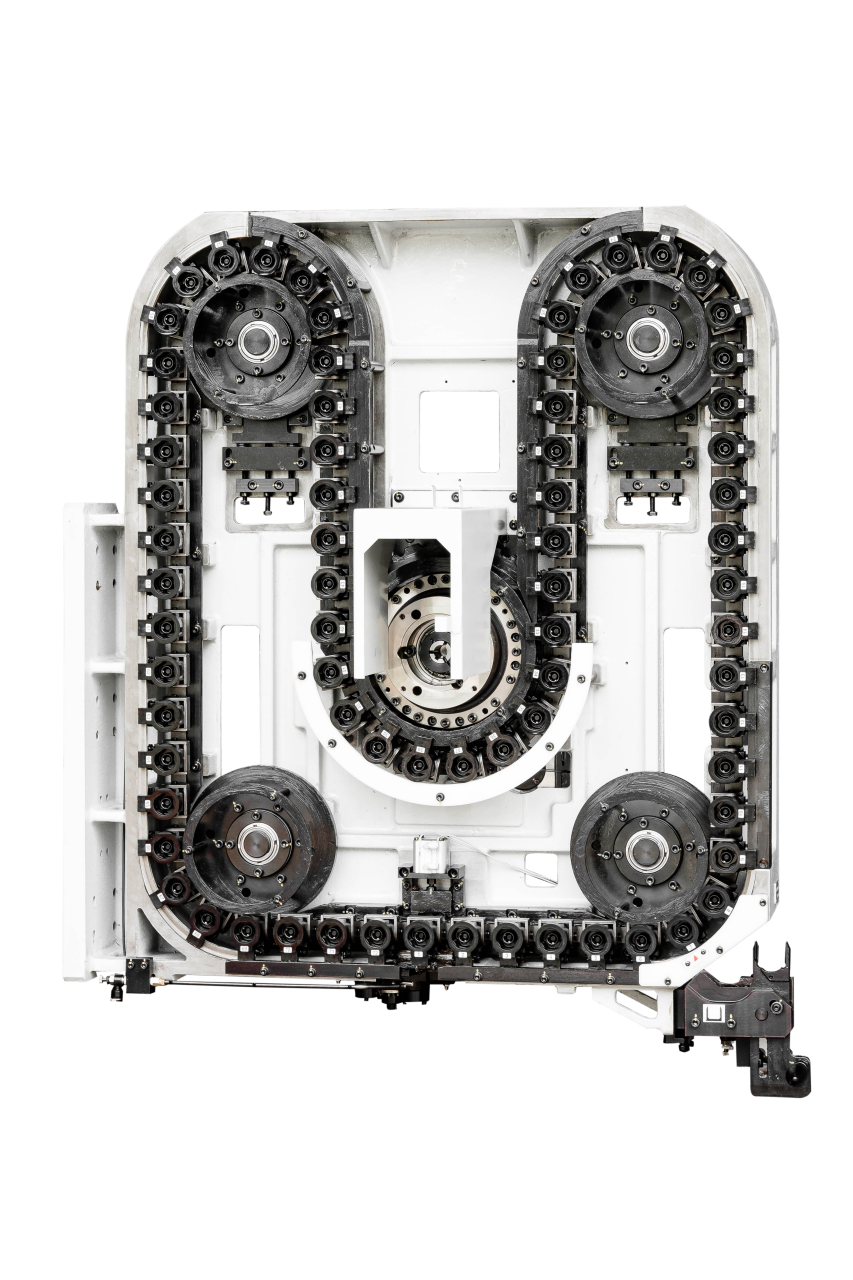

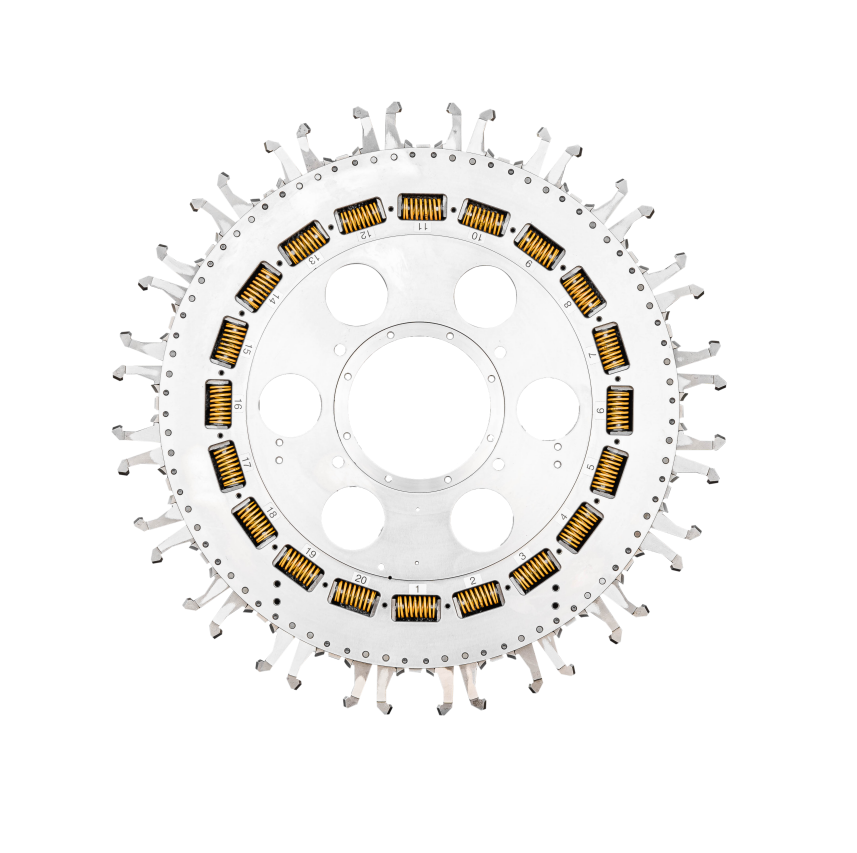

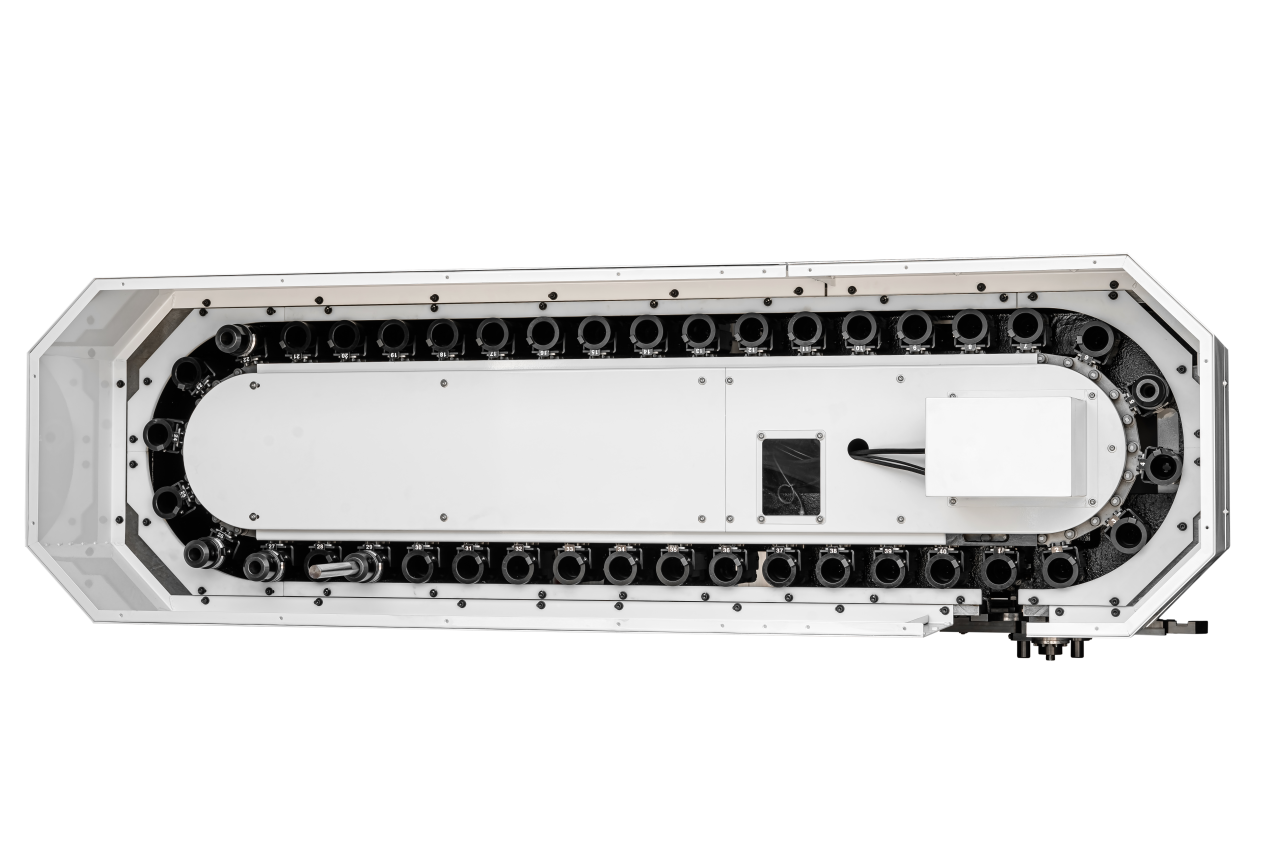

| Magazine Specifications | # 30 |
|---|---|
| Tool shank | BT / HSK |
| Number of magazaine tools | 12T |
| Max. Tool length | 200mm |
| Max. Tool diameter | Ø 80 |
| Max. Tool weight | 4 kg |
| Tool change time | 1.3sec |
| Magazine drive motor | servo |
| Tool running direction | CW / CCW |
| Tool Indexing time | (1 Tool) 0.75sec |
| Tool Indexing Time | (7 Tool) 2.4sec |
| Air pressure | 0.4~0.5Mpa |
| Magazine Specifications | # 30 | # 40 | # 50 |
|---|---|---|---|
| Tool shank | BT / CAT / HSK | ||
| Number of magazaine tools | 20T / 24T / 48T | 20T / 24T / 30T | 20T / 24T |
| Max. Tool length | 200 mm | 300 mm | 400 mm |
| Max. Tool diameter | Ø 65 / Ø 55 | Ø 80 | Ø 120 |
| Max. Tool weight | 4 kg | 8 kg | 20 kg |
| Tool change time | 1.3 sec | 1.5 sec | 2.5 sec |
| Magazine drive motor | servo | servo | servo |
| Tool running direction | CW / CCW | CW / CCW | CW / CCW |
| Air pressure | 0.4~0.5 Mpa | 0.4~0.5 Mpa | 0.4~0.5 Mpa |
| Magazine Specifications | # 30 |
|---|---|
| Tool shank | C4 / HSK |
| Number of magazaine tools | 72T |
| Max. Tool length | 180 mm |
| Max. Tool diameter | Ø 55 |
| Max. Tool weight | 4 kg |
| Tool change time | 1.3 sec |
| Magazine drive motor | servo |
| Tool running direction | CW / CCW |
| Tool Indexing time(1 Tool) | 0.39 sec |
| Tool Indexing Time(36 Tool) | 7.1 sec |
| Air pressure | 0.4~0.5 Mpa |
| Magazine Specifications | # 40 | # 40 | # 40 | # 40 |
|---|---|---|---|---|
| Tool shank | BT / CAT / HSK | |||
| Number of magazaine tools | 20T | 24T | 30T | 40T |
| Max. Tool length | 300mm | 300mm | 300mm | 300mm |
| Max. Tool diameter | Ø 100 | Ø 100 | Ø 100 | Ø 100 |
| Max. Tool weight | 8 kg | 8 kg | 8 kg | 8 kg |
| Magazine drive motor | servo | servo | servo | servo |
| Tool running direction | CW/CCW | CW/CCW | CW/CCW | CW/CCW |
| Tool Indexing time(1 Tool) | 0.71sec | 0.65sec | 0.68sec | 0.77sec |
| Tool Indexing Time | 3.0sec/10本 | 3.0sec/12本 | 3.2sec/15本 | 4.0sec/20本 |
| Magazine Specifications | # 40 |
|---|---|
| Tool shank | BT / CAT / HSK |
| Number of magazaine tools | 40T / 60T |
| Max. Tool length | 300 mm |
| Max. Tool diameter | Ø 85 |
| Max. Tool weight | 8 kg |
| Tool change time | 1.1sec |
| Magazine drive motor | servo |
| Tool running direction | CW / CCW |
| Tool Indexing time(1 Tool) | 0.61 sec |
| Tool Indexing Time(30 Tool) | 9.7 sec |
| Oil pressure | 25 kg / cm |
